PRODUCTS

SERIAL MANUFACTURING & CUSTOMISED SYSTEMS

AIR6 SYSTEMS | AIRBORNE ROBOTICS provide a full UAV product and equipment range to cover more than 95% of all currently possible applications. We strive to deliver only highest quality products, MADE IN EUROPE. Our systems can be mounted with multiple sensors (RGB, thermal, multispectral, LiDAR, etc) and are specifically designed to provide meaningful data. While our core business is designing & manufacturing drones, we provide our customers with end-to-end TURNKEY UAV SOLUTIONS for each application – comprising of UAV hardware, integrated sensors, customisations, operating and flight planning software, post-processing software and support & training.

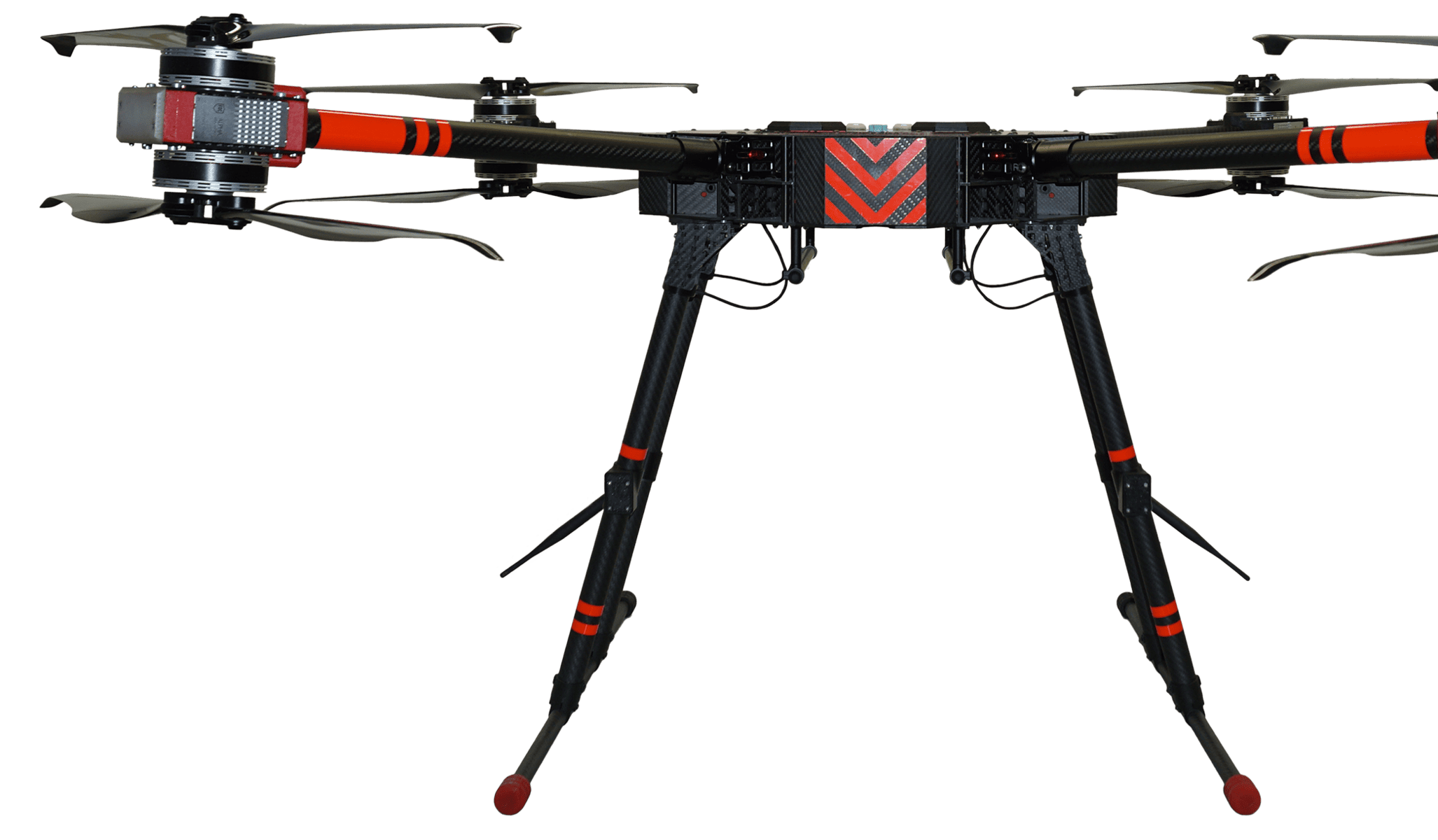

AIR8 MEDIUM LIFTER

The AIR8 drone is designed for medium payload and medium flight range missions. It is equipped with enough power reserves for Laser scanning / LiDAR surveys, customised sensors (eg. radiometric, muon) and for heavier film camera equipment. Our AIR8 possess the market-leading flight characteristics (flight time, payload capacity, redundancy and water resistance).

Payload

Recommended payload:

Up to 10 kg

Payload

4x Li-ION batteries with

extended charging cycles

(up to 1,000x)

Payload

Flight time:

Up to 60 minutes

Payload

Temperatures:

-20°c to +60°c

Newest flight technology. Enhanced battery performance.

  • OctoCopter (4 arms / 8 rotors)
  • >90% carbon
  • Foldable / detachable arms
  • Retractable landing gear
  • Small pack size delivered with hard case
  • Weather resistance: IP54 (dust and splash water safe)

Optional:

  • Full redundancy package
  • Real Time Kinematic (RTK), Post Processed Kinematic (PPK), Precise Point Positioning (PPP)
  • 4G, 5G or satcom communication module
  • Logistics functions: payload transport and drop-off

MODULAR CONSTRUCTION

4 Component Groups

Centre body

Li-ION power batteries

Detachable & collapsible arms

Mounting rail for multiple payloads

Detachable landing gear

Eight highly efficient carbon rotors

Water resistant: no cables exposed

Wind speeds up to 60km per hour

Flight height 4,000m ASL

Multiple sensors and payloads

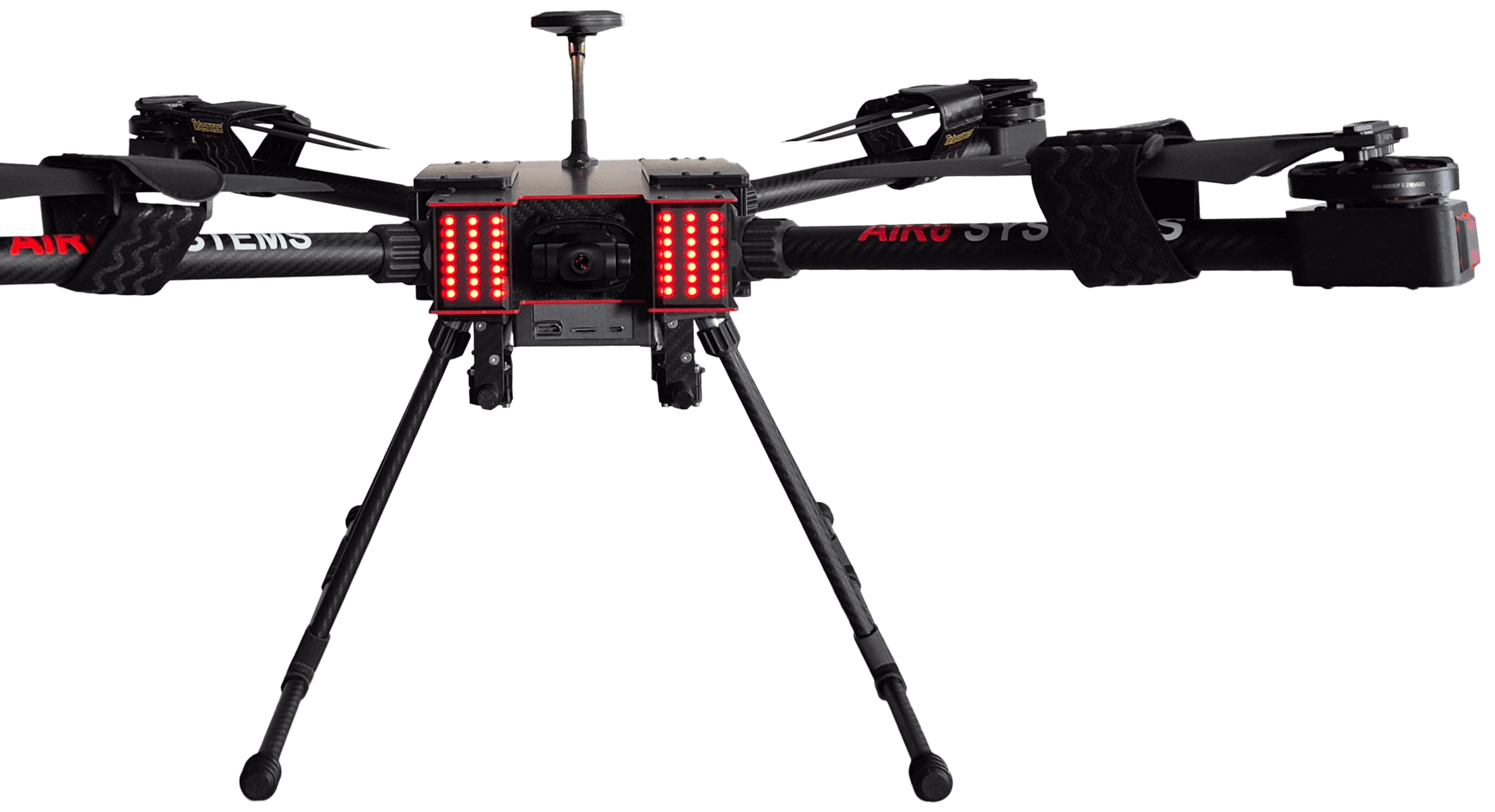

AIR4 RUGGED

The AIR4 Rugged is a powerful but compact system that combines the latest advanced UAS technology features for EXTREME working environments and UNIVERSAL applications. Inspired by ruggedized hardware this AIR4 is a durable and robust drone that has a payload capacity of (>3.5kg). It’s light weight body and versatile construct allow for multiple sensors and customisations. With superior powers reserves it can handle extreme wind and weather conditions.

Payload

Recommended payload:

<1.5 kg | possible: <3.5kg

Payload

2x Li-ION batteries with

extended charging cycles

(up to 1,000x)

Payload

Flight time:

Up to 60 minutes

Payload

Temperatures:

-20°c to +60°c

Versatile and agile in extreme conditions.

  • QuadCopter (4 arms / 4 rotors)
  • >90% carbon
  • Detachable arms and landing gear
  • Small pack size delivered with hard case

Optional:

  • GPS-denied navigation and DAA (Detect & Avoid)
  • 4G / 5G communication modules

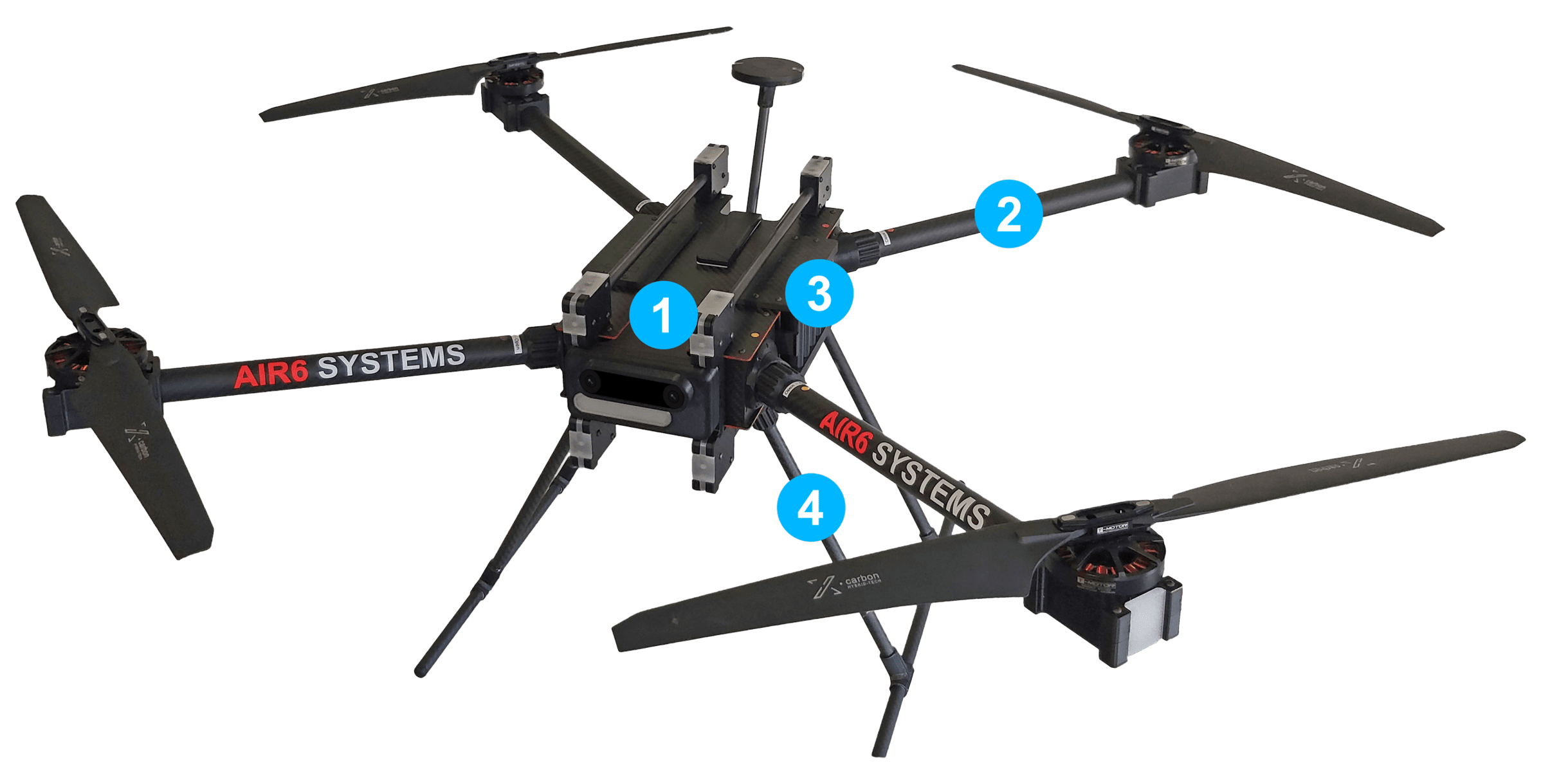

MODULAR CONSTRUCTION

4 Component Groups

Centre body

Detachable arms

Li-ION power batteries

Detachable landing gear

Mounting rail for multiple payloads

AIR4 Rugged

Multi-rotor copter with 4 motors

Extreme weather capabilities

Wind speeds up to 60km per hour

Flight height 4,000m ASL

AIR4 R
Technical specifications

AIR4 LIGHT

The AIR4 LIGHT is a light-weight (<2.5g) drone which is very versatile and structured with open-platform architecture. Due to its optimal price / performance ratio is the perfect R&D drone. I can be equipped with a range of light payload sensors (RGB, thermal, multispectral) for data collection or with our complete array of systems sensors for GPS-denied operations. It can operate individually or in a swarm formation with AIR4 LIGHTs or our other drones. It is also popular as a secondary, practise drone in combination with our larger systems.

Payload

Recommended payload:

Up to 0.5 kg

Payload

1x Li-ION batteries with

extended charging cycles

(up to 1,000x)

Payload

Flight time:

Up to 40 minutes

Payload

Temperatures:

-20°c to +60°c

Light-weight drone with great price-performance-ratio.

  • QuadCopter (4 arms / 4 rotors)
  • >90% carbon
  • Array of sensors
  • Detachable arms and landing gear
  • Small pack size delivered with hard case

Optional:

  • GPS-denied navigation and DAA (Detect & Avoid)

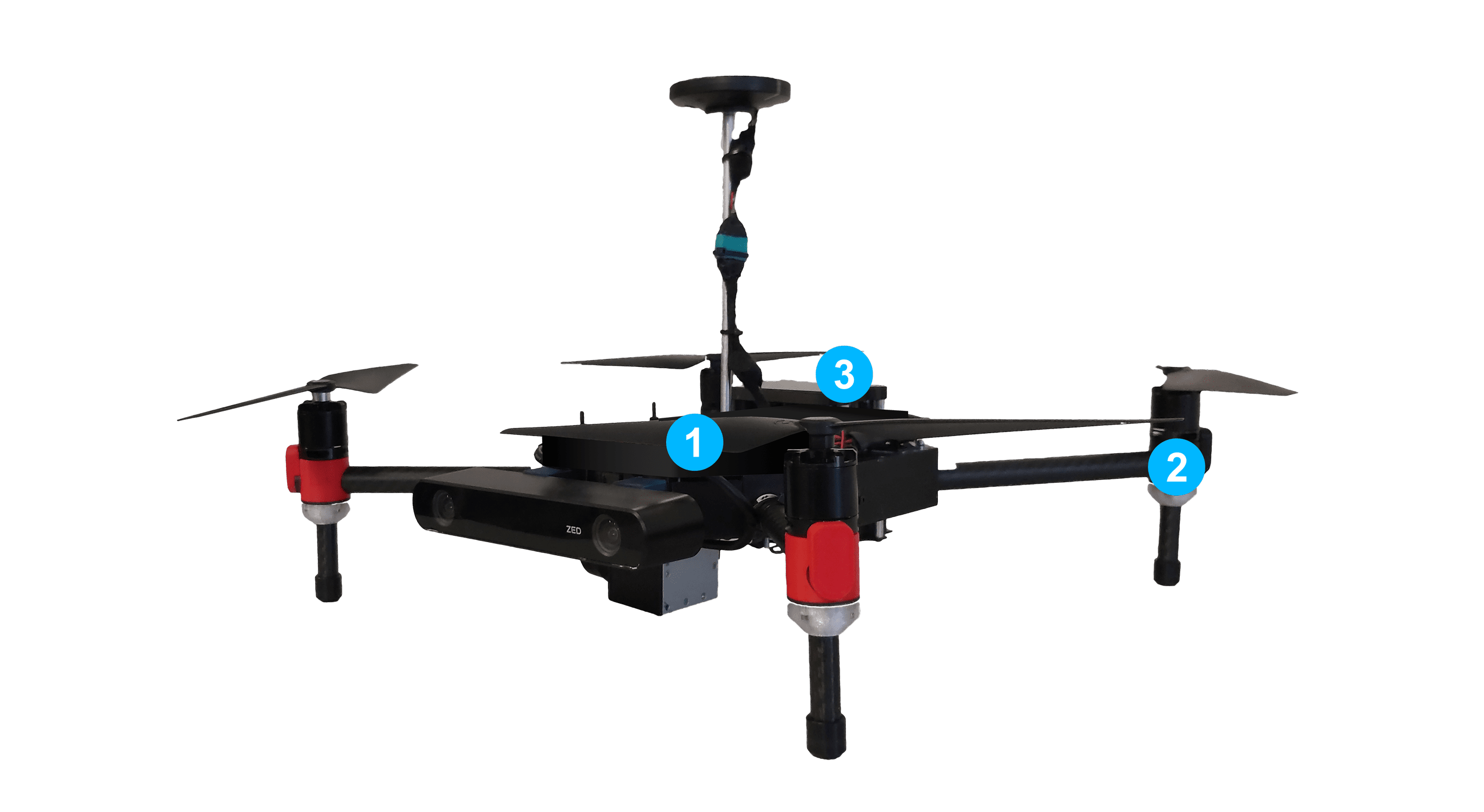

MODULAR CONSTRUCTION

3 Component Groups

Centre body

Detachable arms

Li-ION power battery

Mounting for multiple payloads

Position Camera

Companion PC

2D LiDAR

Technical specifications

AIR4 NANO

The AIR4 NANO is an ultra-light (<250g) drone for surveillance and tactical reconnaissance. It can be equipped with a range of light sensors (RGB, thermal, distraction) and can operate individually or in a swarm with other AIR4 NANOs or our larger drones. It can serve as the eye-in-the-sky while companion drones are performing other functions.

Payload

Recommended payload:

Up to 100 g

Payload

1x Li-ION batteries with

extended charging cycles

(up to 1,000x)

Payload

Flight time:

Up to 30 minutes

Payload

Temperatures:

-20°c to +60°c

Ultra-light weight reconnaissance drone.

  • QuadCopter (4 arms / 4 rotors)
  • >90% carbon
  • Detachable arms
  • Small pack size delivered with hard case

Optional:

  • 4 different payload modules

MODULAR PAYLOAD OPTIONS

4 Payload Modules (upward and / or downward facing)

RGB / daytime camera

EO / IR, thermal camera

Combined RGB & thermal camera

Distraction payload

Multi-rotor copter with 4 motors

Li-ION power battery

Technical specifications
